Customized 24813mm Marble Tip Diamond Segment for Soft and Hard Cutting in Pakistan

Ask Lasest Price
Brand Name :	Linsing
Model Number :	Diamond marble segment
MOQ :	2 sets
Supply Ability :	150000 Piece/Pieces per Month diamond segments
Price :	$0.65/pieces >=160 pieces

Add to Cart

Product Details
Company Profile

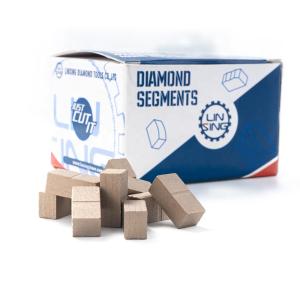

Customized 24813mm Marble Tip Diamond Segment for Soft and Hard Cutting in Pakistan

Diamond Segment For Marble Cutting
Marble cutting segments is a kind of diamond tool specially used for marble processing It is mainly used for cutting marble block, slab and thin plate.

Product Features:
1. Good sharpness and high efficiency without chipping.
2. Strict QC for stable cutting performance.
3. Long lifespan with high cost-effective.
4. Segment is easy for opening.
Product Specification:

Blade Diameter(inch/mm)	Steel Core Thickness(mm)	Segment Specification(mm)	Segment No.(pcs)
Φ12”/300	2.2	42/40x3.2x8(10,12,15)	22
Φ14”/350	2.2/2.4	42/40x3.4x8(10,12,15)	25
Φ16”/400	2.6	42/40x3.6x8(10,12,15)	29
Φ18”/450	2.8/3.0	40x4x8(10,12,15)	32
Φ20”/500	3.0/3.2	40x4.2x8(10,12,15)	35
Φ24”/600	3.6/3.8	40x5x8(10,12,15)	42
Φ28”/700	4	40x5.2x8(10,12,15)	50
Φ32”/800	4.5	40x6x8(10,12,15)	57
Φ36”/900	5.0	24x7.5x8(10,12,13,15)	64
Φ40”/1000	5.0	24x7.5x8(10,12,13,15)	70
Φ48”/1200	5.5	24x8.0x8(10,12,13,15)	80
Φ52”/1300	6.0	24x8.5x8(10,12,13,15)	88
Φ56”/1400	6.5	24x9.0x8(10,12,13,15)	92
Φ64”/1600	7.2	24x9.2x8(10,12,13,15)	108
Φ72”/1800	7.5	24x10x8(10,12,13,15)	120
Φ80”/2000	8.0	24x10.5x8(10,12,13,15)	128
Φ88”/2200	8.0/9.0	24x11x8(10,12,13,15)	132
Φ100”/2500	9.0	24x11x8(10,12,13,15)	140
Φ120”/3000	9.5	24x12x8(10,12,13,15)	160
Φ140”/3500	9.5	24x12x8(10,12,13,15)	180

Other specifications are available upon request.

Product Description

Customized 24*8*13mm Marble Tip Diamond Segment for Soft and Hard Cutting in Pakistan

Customized 24813mm Marble Tip Diamond Segment for Soft and Hard Cutting in Pakistan
